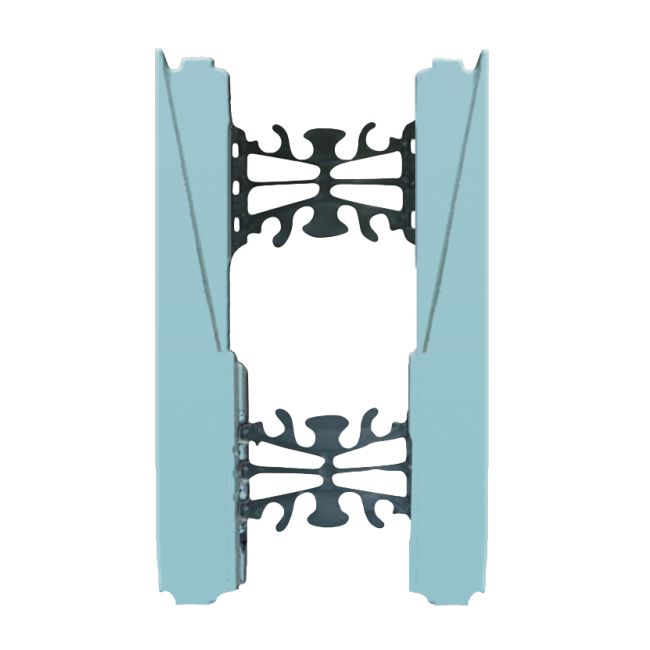

Standard Form Units assembled with folding metal hinged web.

Packaged in bundles of 3 pieces @ 1.11 m² each piece. See attachments for dimension details and visit http://www.nudura.com/training/installation-videos for full installation details and videos.

Snap shot useful info

• Weight per package: 20.41 kg
• Area per piece: 1.11 m²
• Dimensions per package: 2.69m x 0.48m x 0.46m
• Pieces in a 40'HC: 361
• Packages in a 40'HC: 120

Volume (m³) of concrete required per piece. (Check with your engineer for the grade of concrete required for your project.)

• Core Size 100 mm: = 0.157 m³
• Core Size 150 mm: = 0.214 m³
• Core Size 200 mm: = 0.271 m³
• Core Size 250 mm: = 0.327 m³
• Core Size 300 mm: = 0.384 m³

Reinforcement required

• NUDURA have developed reinforcement tables based on European and North American code you can refer to these as guidance but always comply with your local code.
