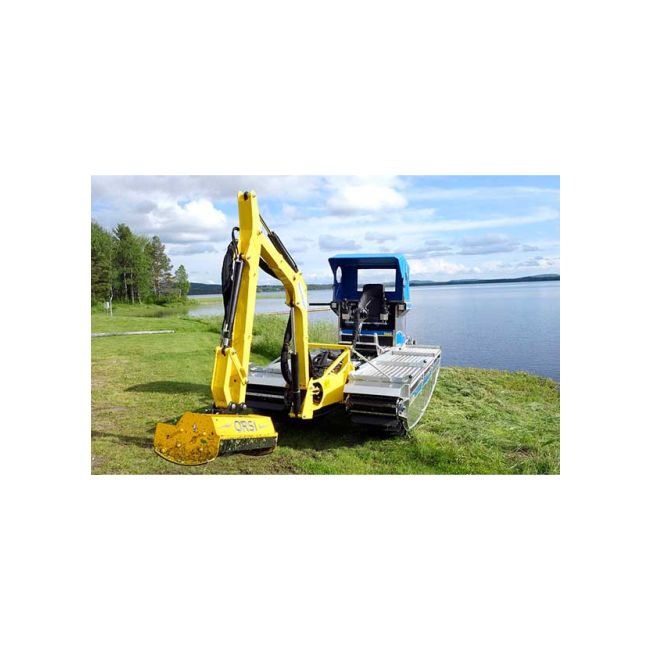

The Doro digger is an excavation aggregate and combined mounting system for other tools. The digging arm is made of high-tensile steel and has built-in brackets for attaching dredge hoses and additional hydraulic tubing.
The maximum depth and reach have been measured from the water surface.
Maximum excavation depth: 3 m
Maximum lifting height: 2.9 m
Maximum reach (radius): 4 m
Maximum reach (diameter) 8 m
Maximum turning radius: 180°
Maximum depth for outrigger pontoons, stabilisation against the bottom (excavation): 2 m
If the water depth is less than 0.1 m, the outriggers can can be removed. The machine will then be lighter and more flexible for use in wetlands, for example.
Buoyancy of outrigger pontoons 2 x 145 kg
Valve package equipped with two-lever system. Semi-automatic quick bracket DM X3. Doro digger cannot be used at the same time as propeller (91-104200).
Complete for mounting on T-serie machines. Excluding prop feet and buckets.
Excavation aggregate: 232 kg
