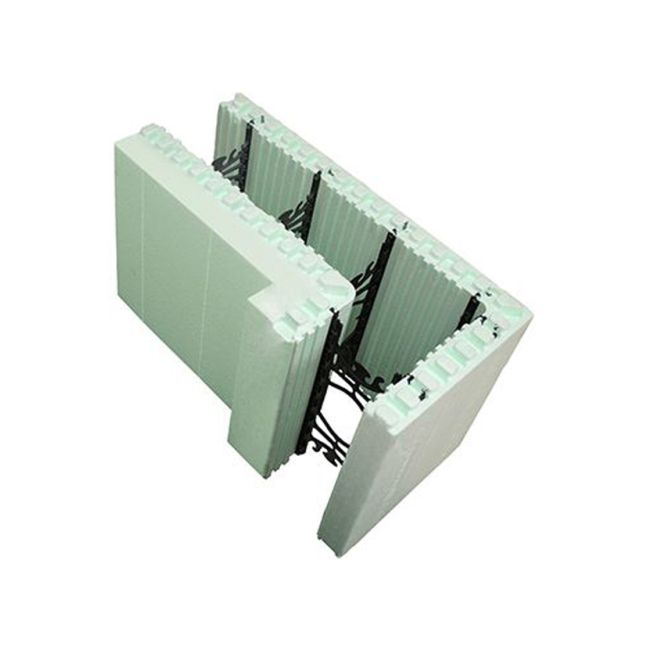

90 Degree Form Unit (Plus Series) - Outside (Long Side) - Price Per Block

As low as AED176.40 AED168.00
In stock
Only %1 left
SKU
906PL

Packaged in bundles of 6 pieces @ 0.56 m2 each piece.

*Not available in stock.

Follow Us

Details

90 Degree Form Units (Plus Series) are used to enhance the R-Value of a structure.

Packaged in bundles of 6 pieces @ 0.56 m2 each piece. See attachments for dimension details and visit http://www.nudura.com/training/installation-videos for full installation details and videos.

Snap shot useful info

  • Weight per package: 20.41 kg (906P1L), 22.68 kg (906P2L), 27.67 kg (906P4L), 33.56 kg (906P6L)
  • Area per piece: 0.56 m2
  • Dimensions per package: 2.85m x 0.48m x 0.48m (906P1L), 2.92m x 0.53m x 0.48m (906P2L), 3.23m x 0.61m x 0.48m (906P4L), 3.58m x 0.71m x 0.48m (906P6L)
  • Pieces in a 40'HC: 647 (906P1L), 571 (906P2L), 454 (906P4L), 349 (906P6L)
  • Packages in a 40'HC: 107 (906P1L), 95 (906P2L), 75 (906P4L), 58 (906P6L)

Volume (m3) of concrete required per piece. (Check with your engineer for the grade of concrete required for your project.)

  • Core Size 100 mm: = 0.048 m3
  • Core Size 150 mm: = 0.067 m3
  • Core Size 200 mm: = 0.093 m3
  • Core Size 250 mm: = 0.122 m3
  • Core Size 300 mm: = 0.153 m3

R-Value increases with thickness of the Form Unit

  • 1" (25mm) = R-Value - 28
  • 2" (50mm) = R-Value - 32
  • 4" (100mm) = R-Value - 40
  • 6" (150mm) = R-Value - 48

Reinforcement required

  • NUDURA have developed reinforcement tables based on European and North American code you can refer to these as guidance but always comply with your local code.

More Information

More Information
NUDURA Series NUDURA Plus Series
Colour Cyan
Packaging Bundle
